Product Details
＋

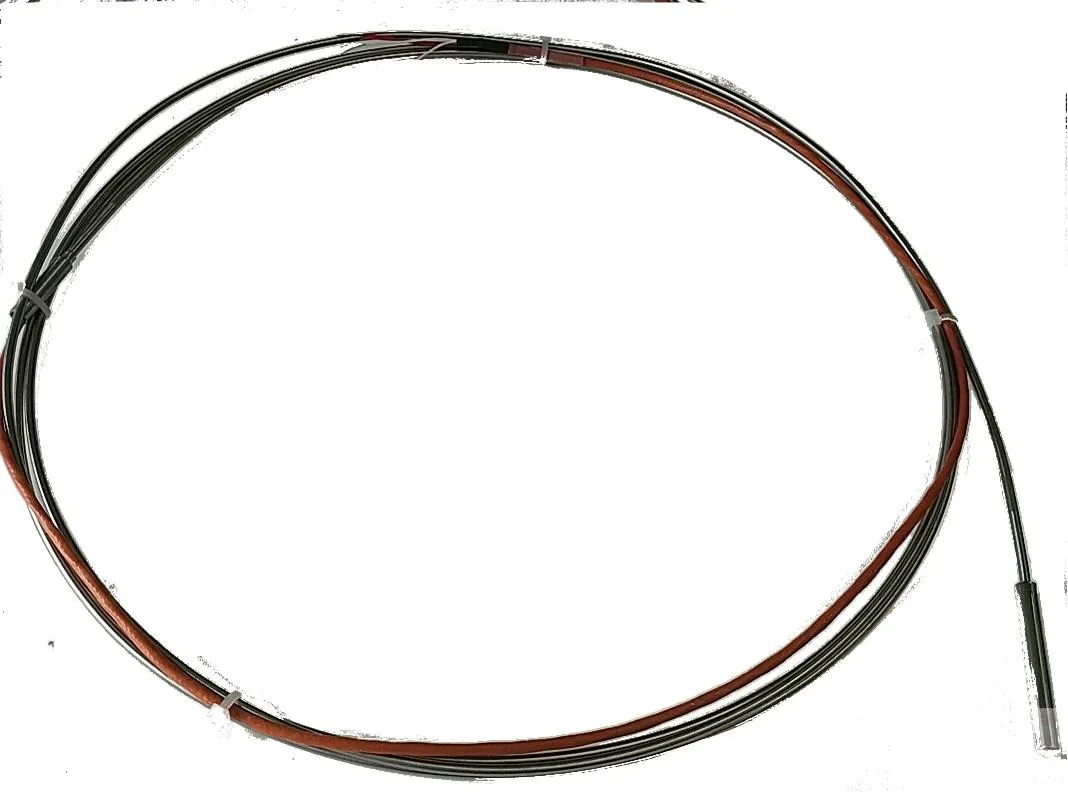

Fastron FRTD-6-3-750-2500 (ST6352) Resistance Temperature Detectors (RTD's) 500 Deg C, 6mm x 3500mm, 6mm x 50mm SS Tip, SS POT Seal potted with high temp epoxy resin, 100 Ohms @ 0 Deg C, Class A, 750mm screened PFA insulated cable
- Class A Accuracy
- Teflon Screened Cable
- Low Long Term Drift
- Rated for -50 to 350 Deg C Max
- Spring Cable Connection
- 3500 x 3mm (6 x 50mm Tip)
- MIMS
- Recommended to use for mounting

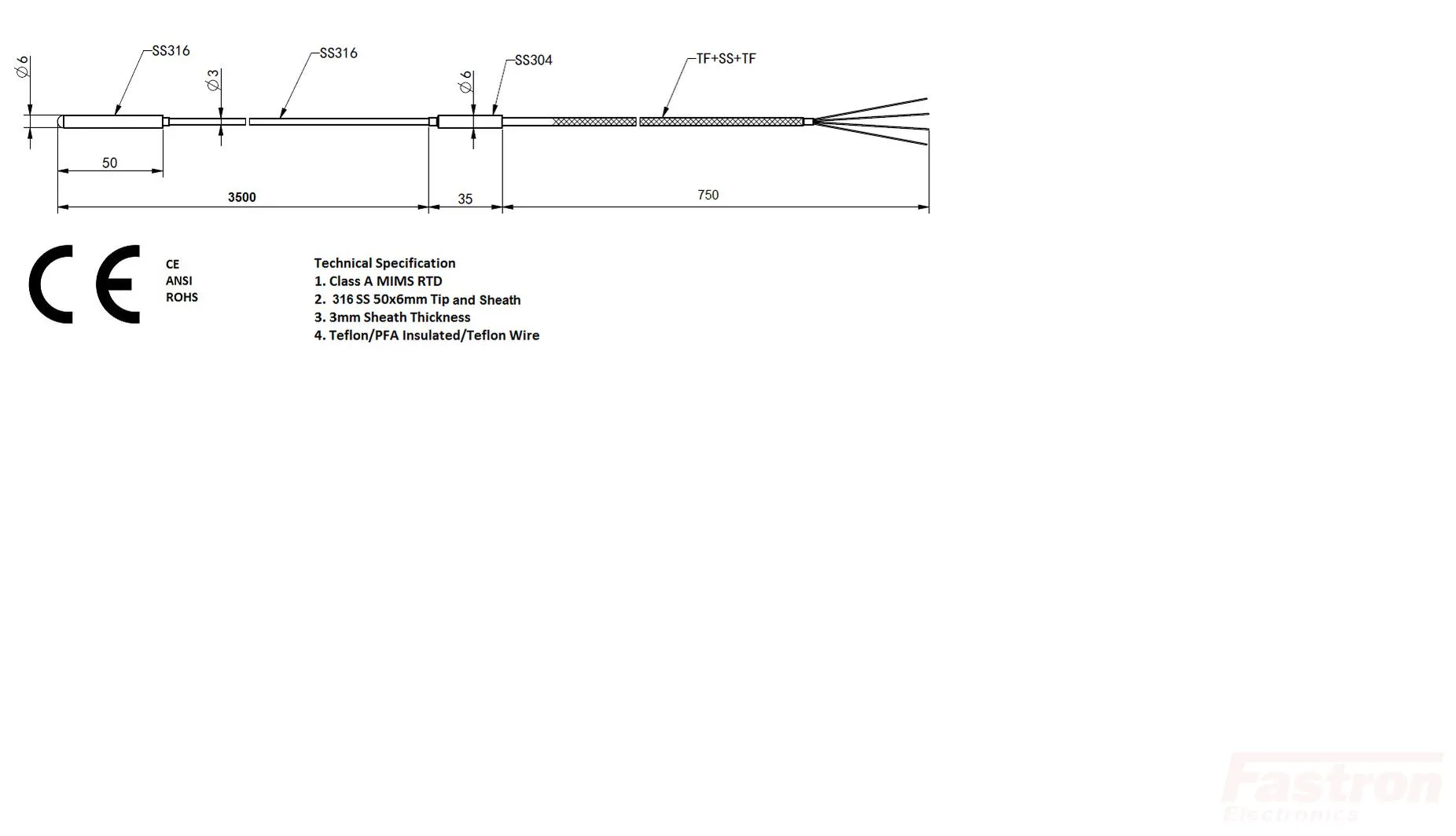

Specification
| Fastron Part Number | FRTD-6-3-3500-750 (ST6352) |
| Sensor Type |
RTD - Resistance Temperature Detectors |
| No of Wires | 4 |
| Shaft Length | 3500mm |
| Shaft Thickness | 3mm (6mm Tip) |
| Accuracy | Class A |
| Cable length | 750mm |
| Cable Type | |
| Temperature Range | -50 to 500 Deg C |
| Special Feature | Spring Cable Strain Relief |
| Mounting Style | Recommended |
| Weight | 1500g |
| Factory Pack Qty | 1 |
