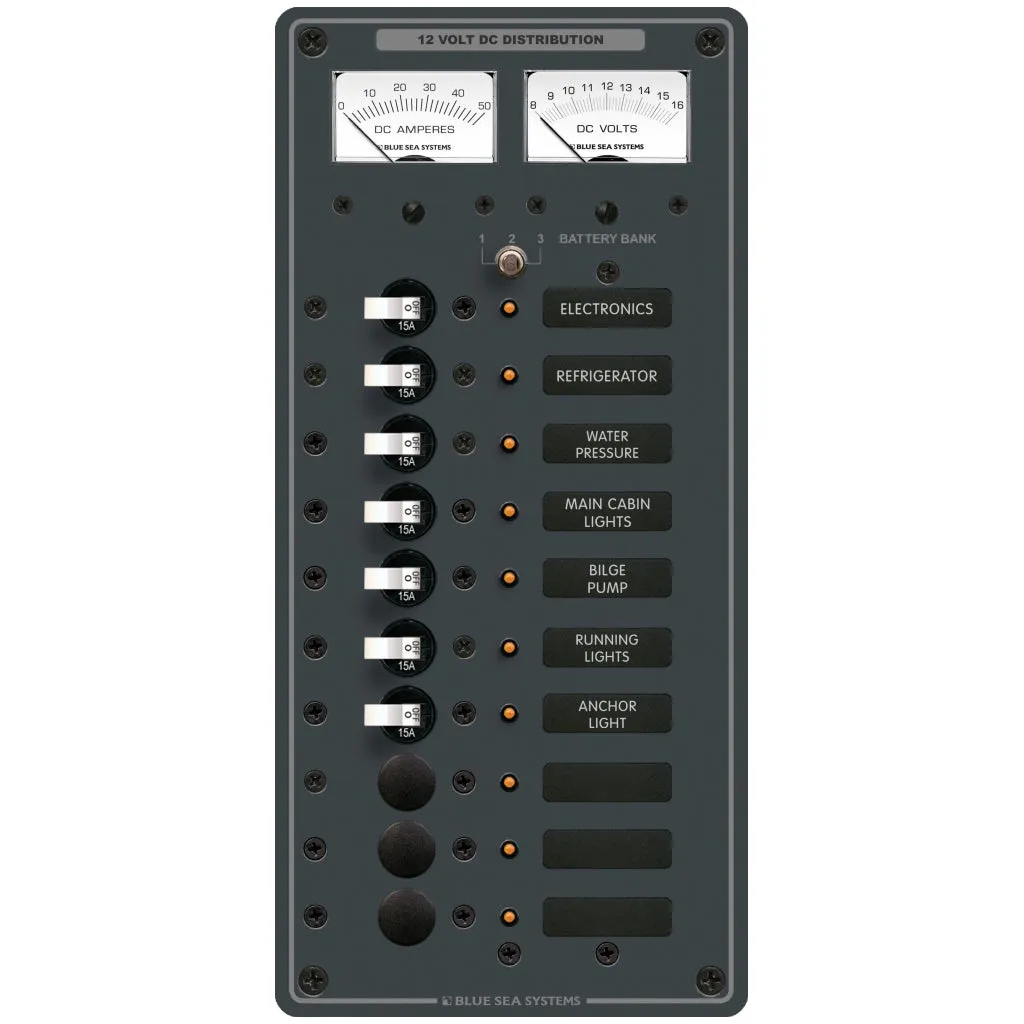

Item# 8082

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

Specifications:

• Positions: 10
• Nominal Voltage: 12V DC
• Maximum Amperage: 50A
• Height:11.25in (285.75 mm)
• Width:5.25in (133.35 mm)
• Depth:2.50in (63.5 mm)
• Weight:3.35lb (1.52 kg)
