Product Details
＋
Notice: Customers should take care of the clearance and customs duties.
Specifications
-
Power: 50W
-
Gray level: 256
-
FPCB colors: black
-
Plate: soft copper
-
Beam Angle: 120 °
-
Light source: SMD 2427 Mini RGB
-
Working Life: >50,000 hours
-
LED Quantity: 11X44 484 Pixels / 22X22 484 Pixels
-
Emitting Color: Full color (24-bit)
-
Standard operating voltage: DC 5V
-
Waterproof: IP30 non-waterproof
-
Working temperature:-20°C~40°C
-
Model: WS2812B 11x44 LED Matrix panel / 22x22 LED Matrix panel
-
IC: WS2812B (WS2811 IC built-in RGB chip)
-

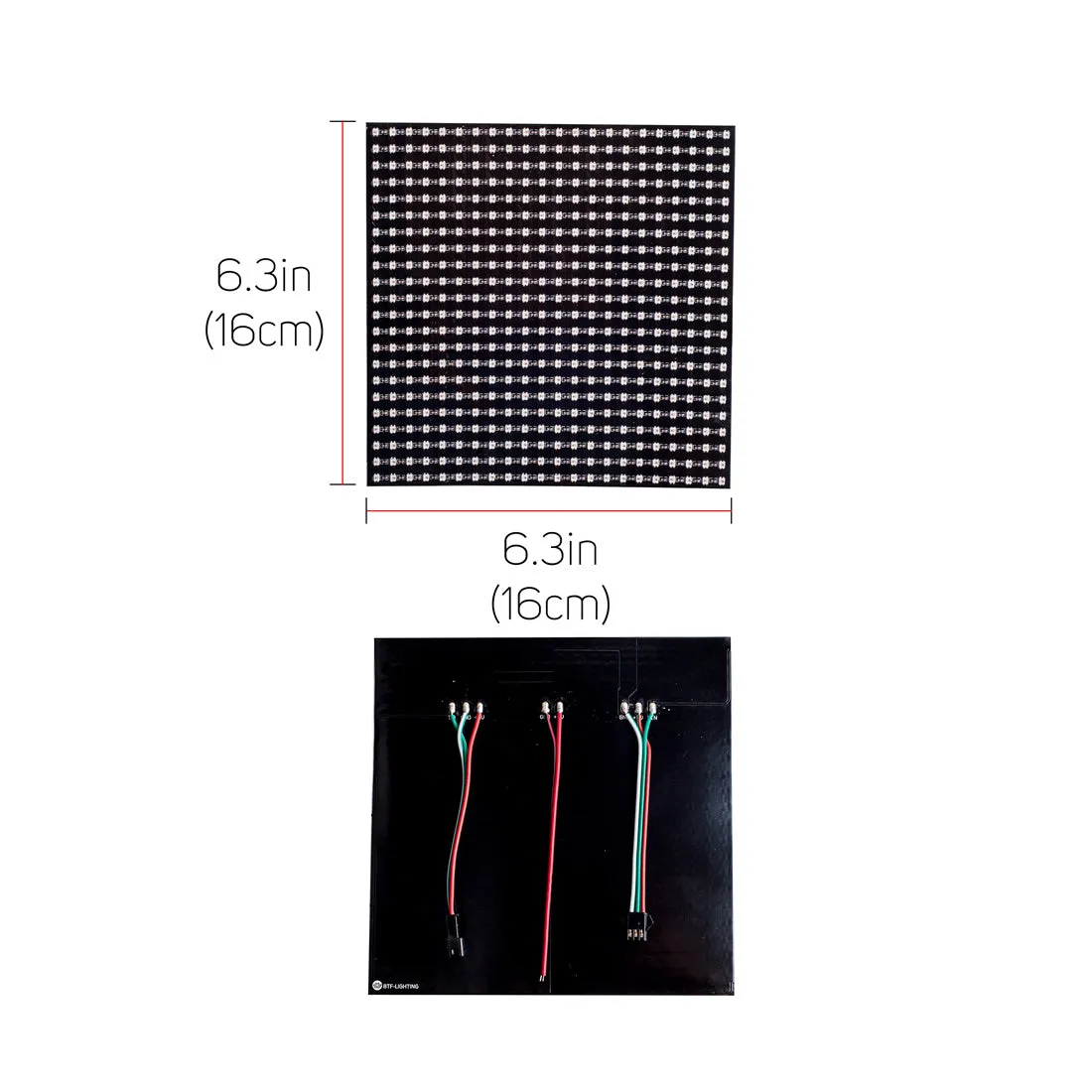

FPCB board size: Length 32cm Width/8cm, Thickness/0.3cm / Length 16cm Width/16cm, Thickness/0.3cm
Precautions

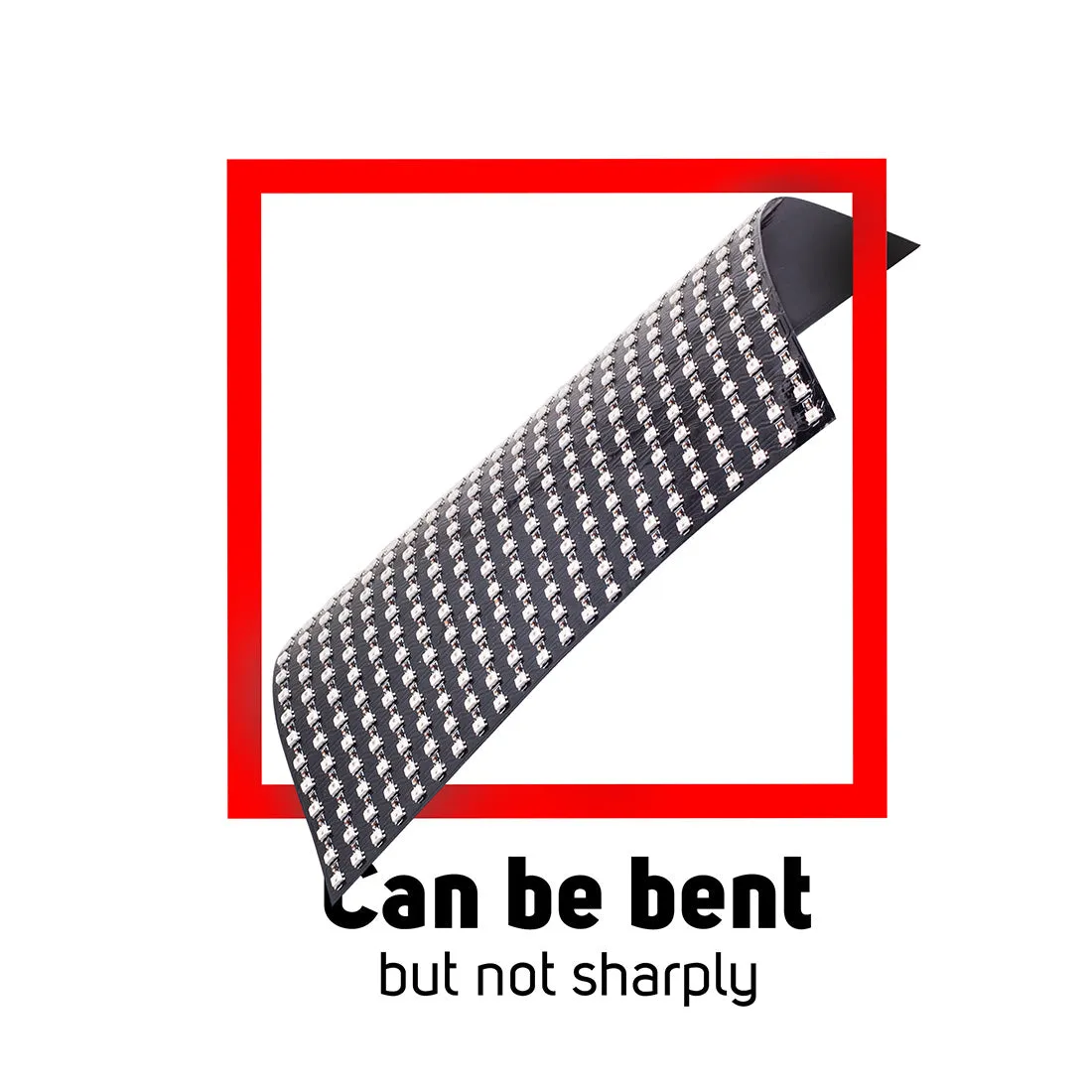

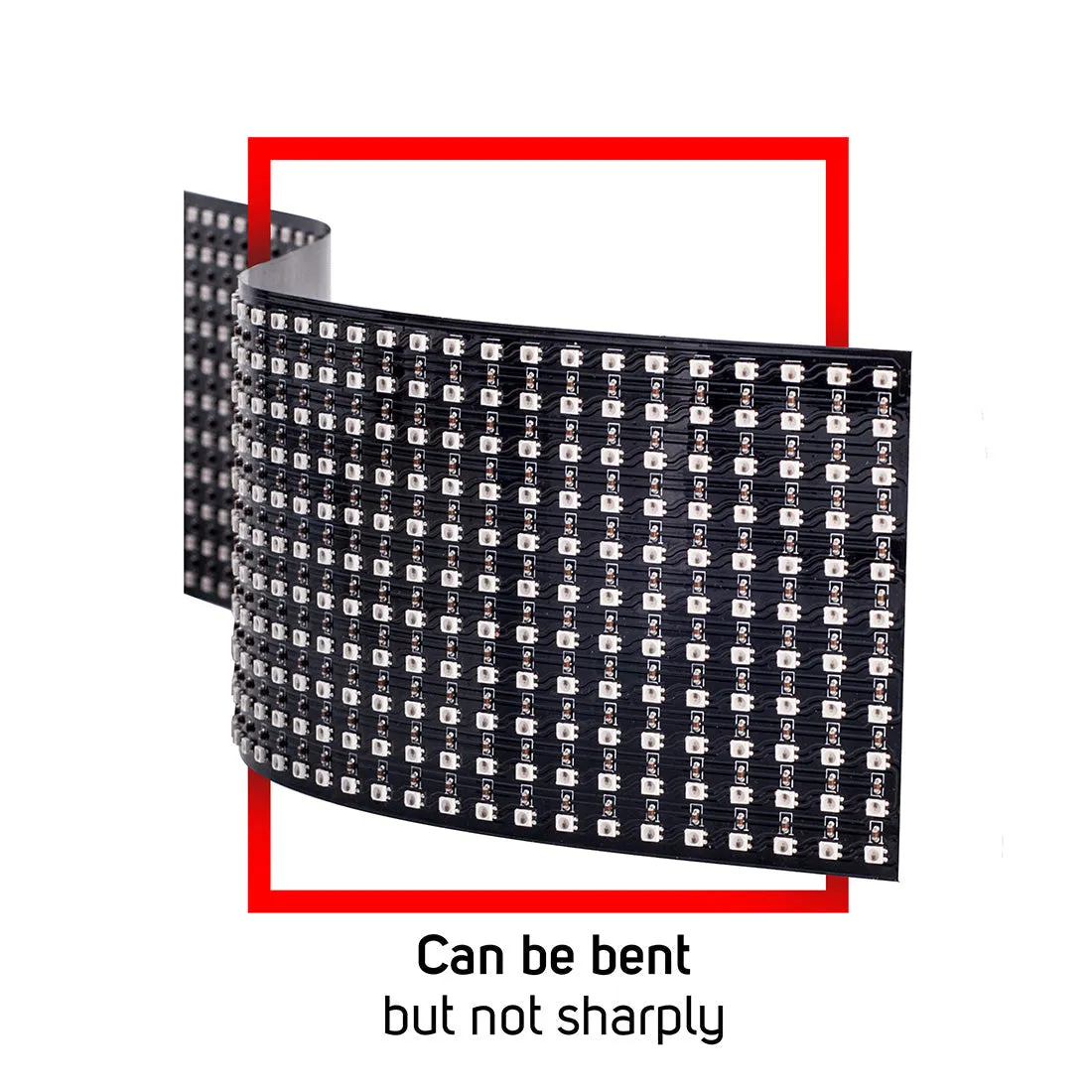

●Do not bend sharply. It will make the LEDs loose and the poor connection. Flexible PCBs are not designed for repeated flexing!
●Using voltage 5V DC. higher than 5V DC will destroy it.
● If you want the data sheet of WS2812B Panel, please let us know, we will send it to your email.
●If you need better led strip performance, you can use a K-1000C controller or another programmable controller.
Package Included:
1X WS2812B LED Panel
