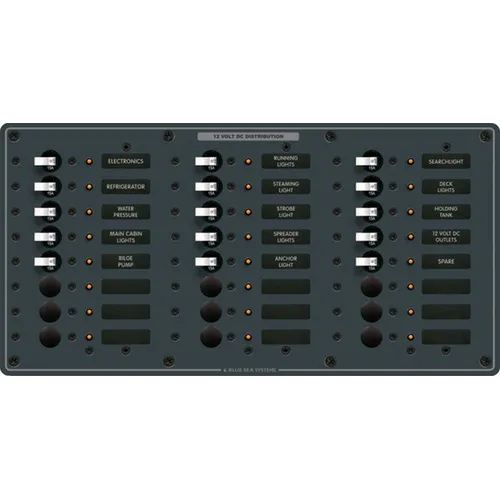

Product Details
＋
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
Specifications:
Positions: 24
Nominal Voltage: 12V DC 24V DC
Maximum Amperage: 100A per bus
Height: 7.50in (190.5 mm)
Width: 14.75in (374.65 mm)
Weight: 7.45lb (3.38 kg)
