Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | Q14P3BXXHB220E |
| Color | Blue |
| Current Rating | 3 mA |
| IP Rating | IP67 |
| Lamp Size | 10 mm |
| Lamp Type | LED |
| Length | 1.131" (28.75mm) |
| Life | 100000 hrs. |
| Mounting Hole Size | 14 mm |
| Mounting Type | Threaded |
| Shop By | Factory Choice |
| Standards | UL Listed |
| Supply Voltage | 220 V |
| Temperature Rating | -40 to 85 C |
| Termination | Lead Wires |
| Type | General Purpose |
| UPC Code | 5056112095750 |
| Warranty | 3 Year Warranty |
Overview

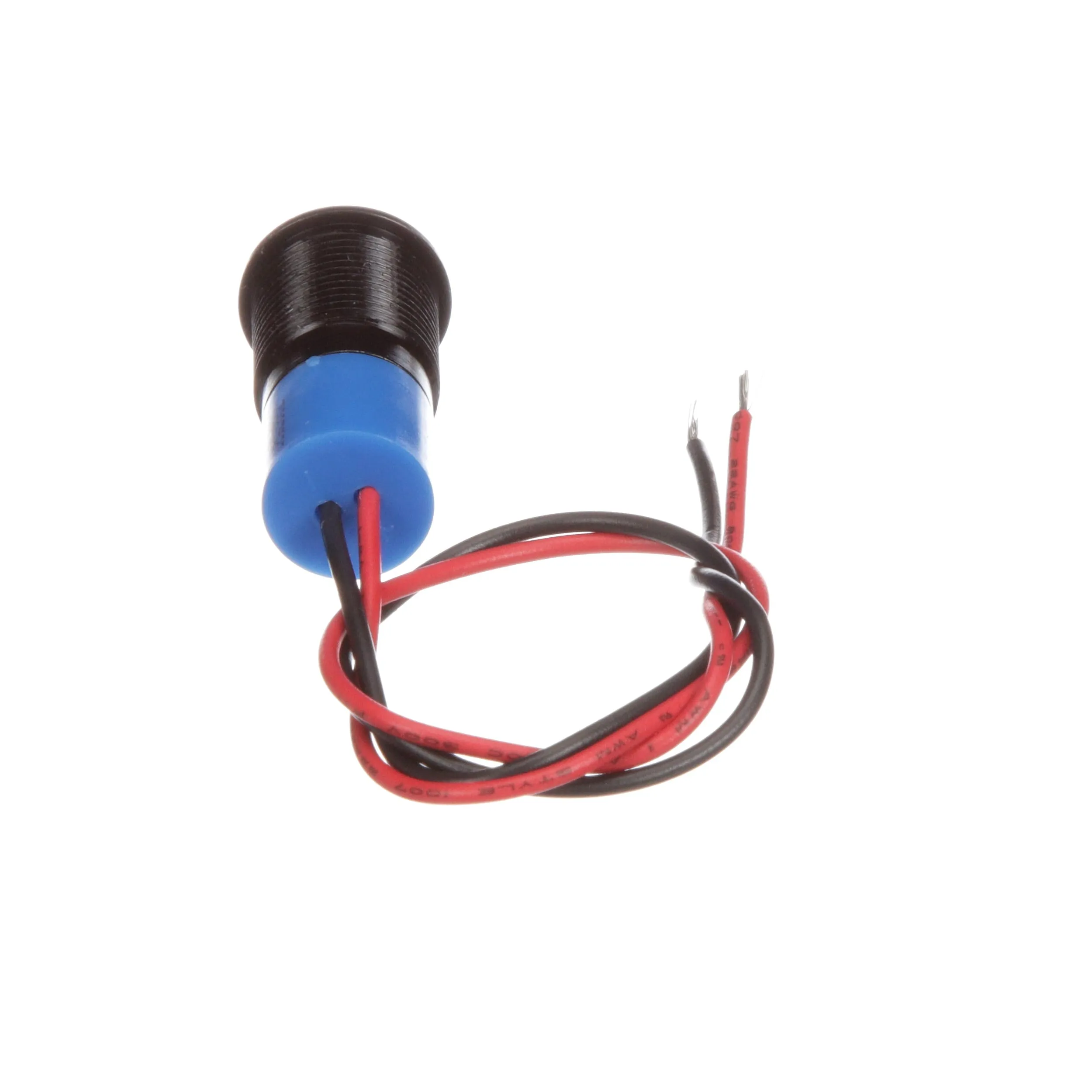

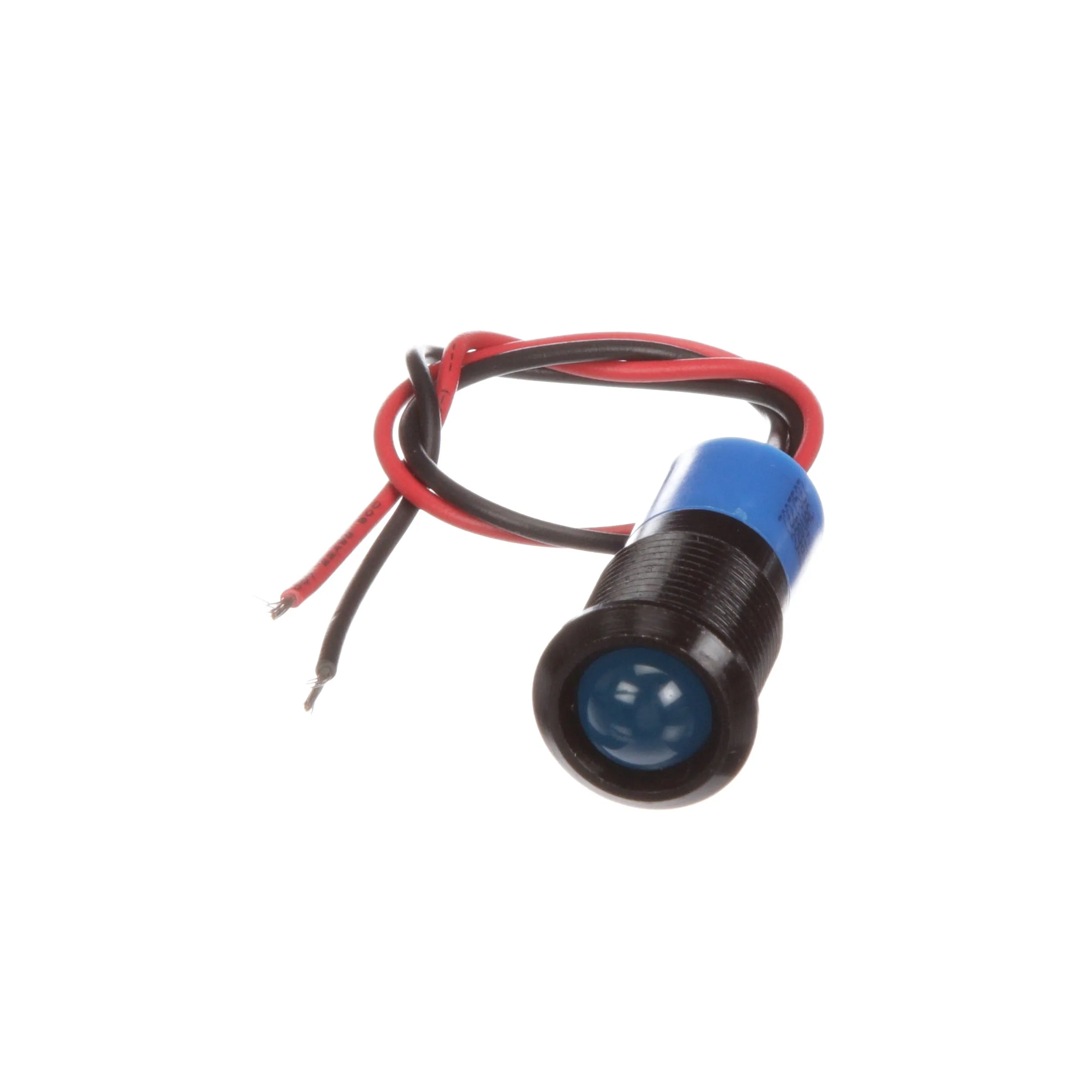

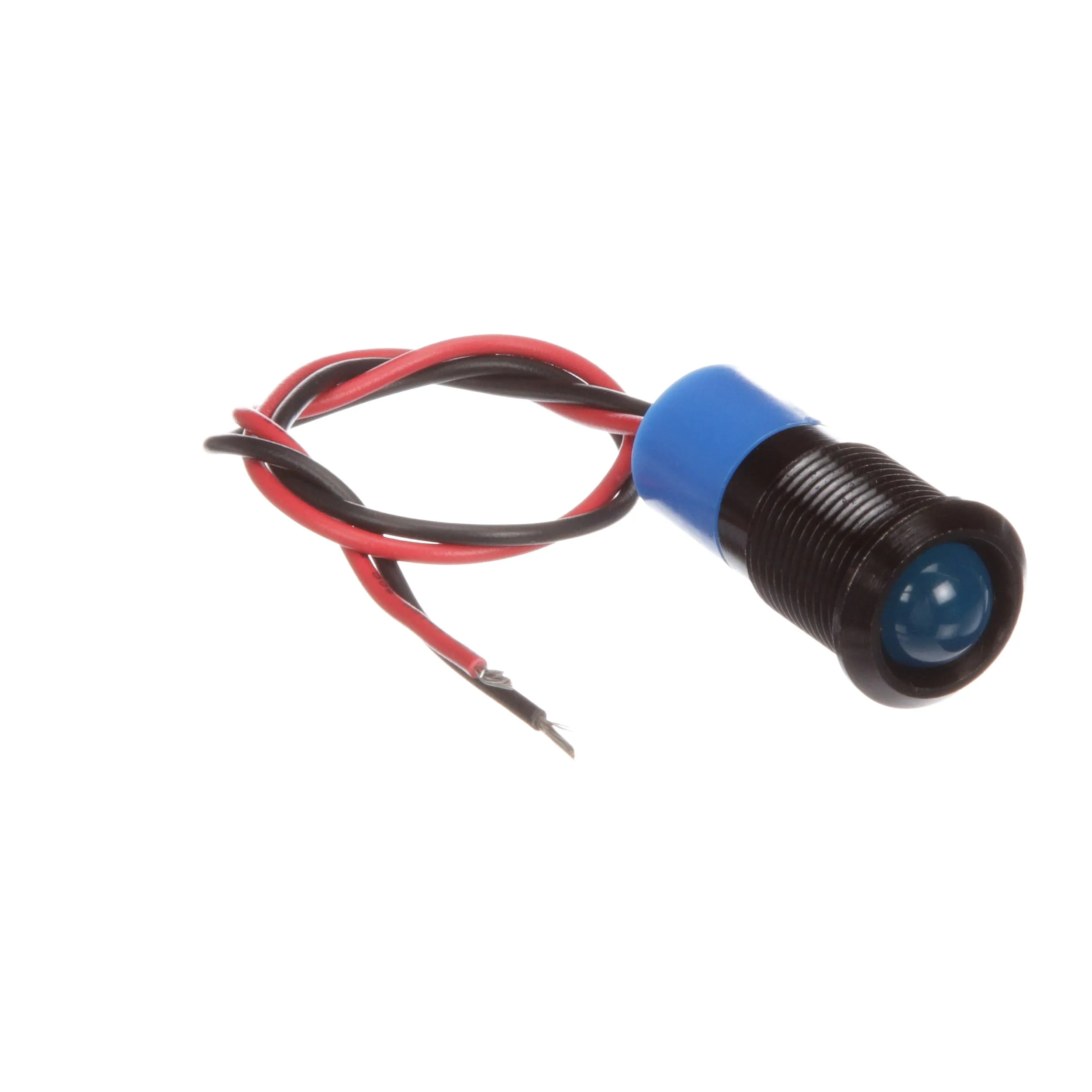

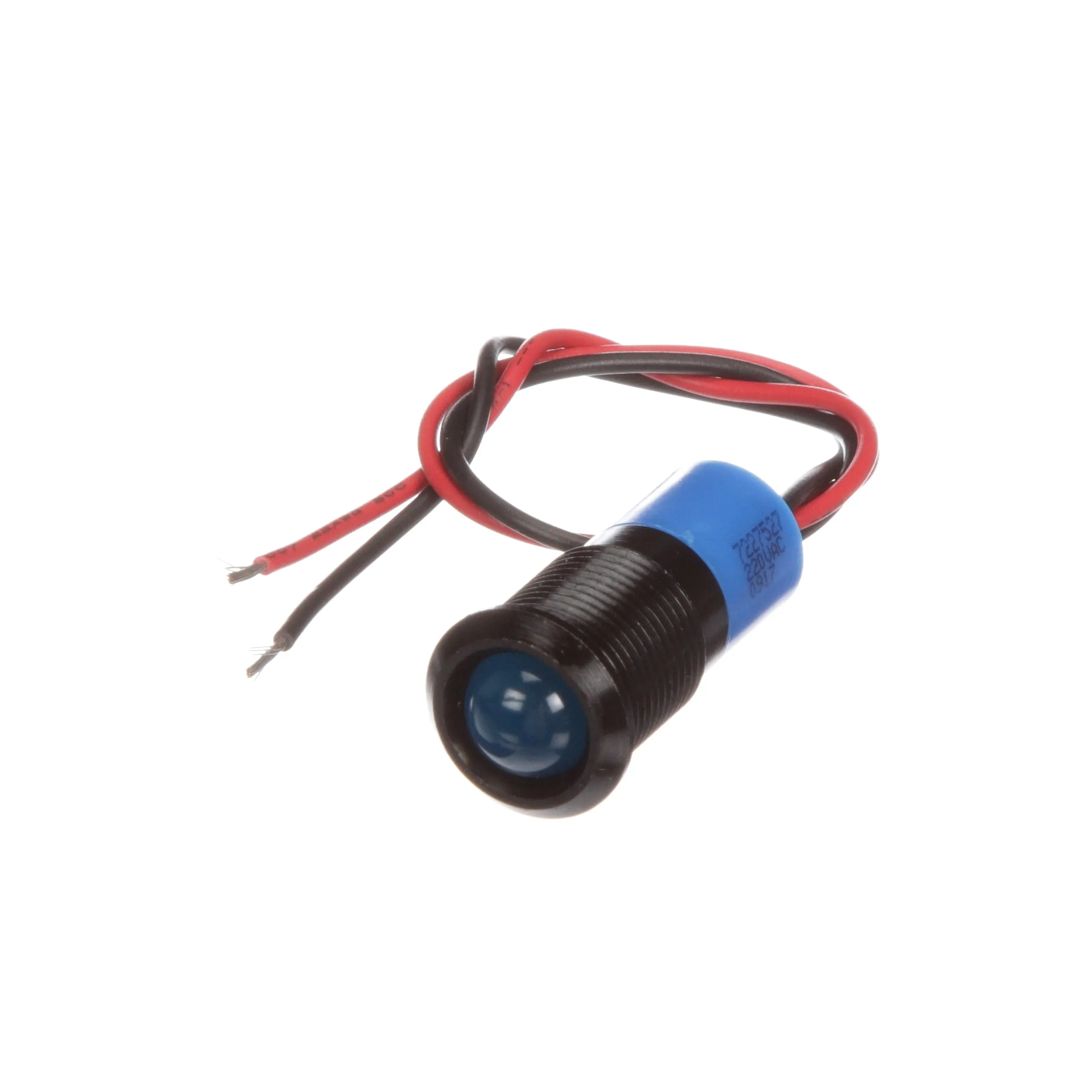

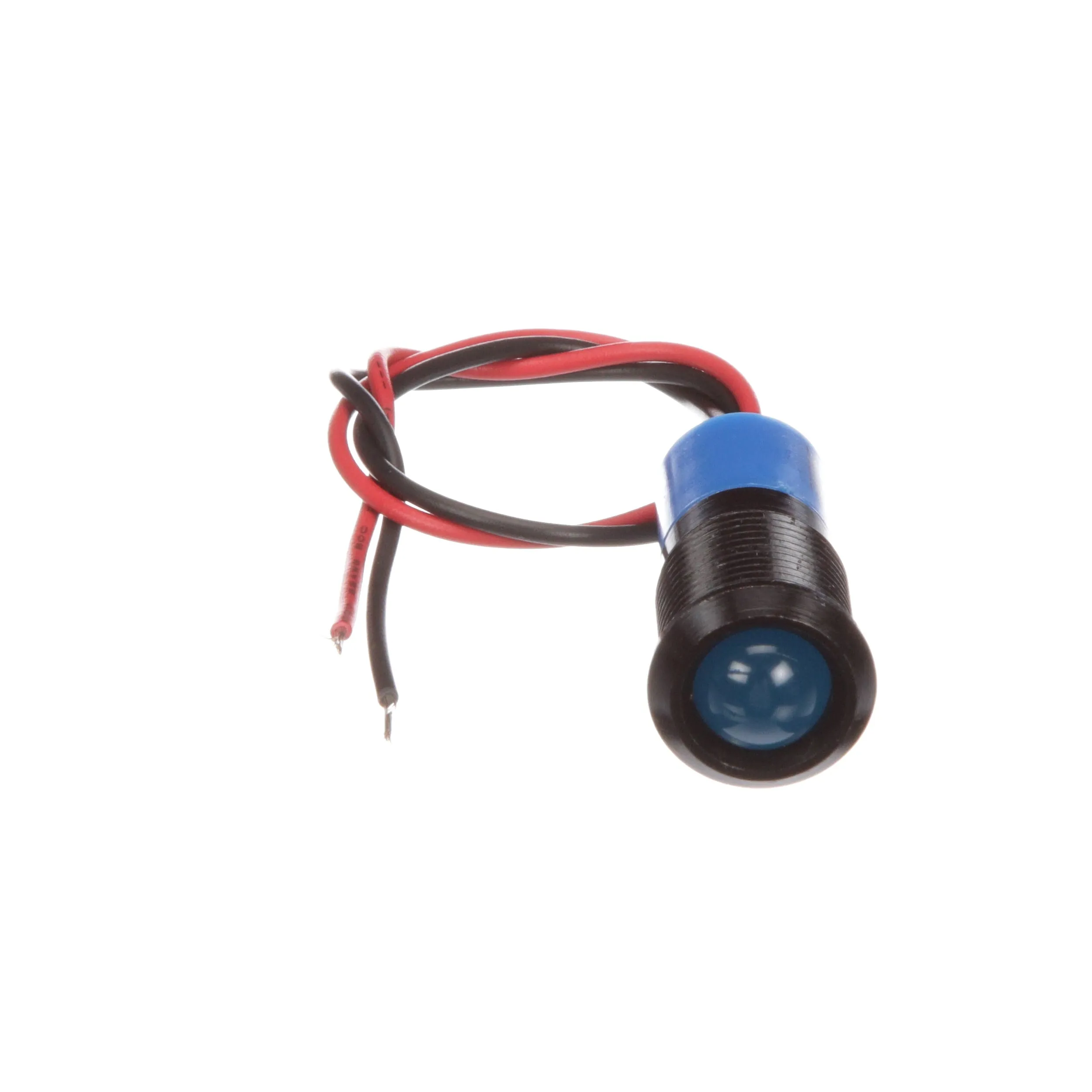

LED Indicators, 14mm Mount, 110 & 220Vac, Wires
These LED’s have been designed for panel mount applications and with an IP67 rating they are suitable for most environments including outdoor applications. They also have a wide operating temperature range of between -40 to 85 C, further increasing the potential applications they may be used for. These 10mm LED’s require a 14mm panel cut-out and are supplied with a fixing nut and spring washer. They offer a wide selection of voltage ratings, bezel finishes and bezel styles.
Standards:
UL recognized
Supplied With:
Fixing nut and spring washer
Approvals:
UL
