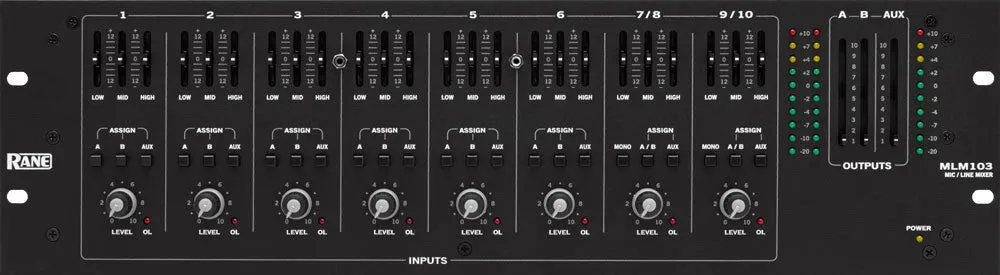

Rane MLM 103 Mic/Line Mixer

The Rane MLM 103 Mic/Line mixer features six balanced, studio-grade microphone inputs and two balanced, stereo line-level inputs. The microphone preamplifiers feature direct outputs. These can monitor the signal `pre' or `post' the mix Level control via rear panel switches. Each microphone and stereo line inputfeatures three-band EQ and mix level controls. Input overload indicators are peak detecting and illuminate 4 dB before clipping. Three balanced outputs are provided. A and B outputs may be used as a stereo pair in a single zone or as two independent mono zones. The AUX output is mono. All connections are viaEuroblock connectors.

Inputs 1 through 6 may be individually switched between Mic or Line level via rear panel switches. Inputs operate in Mic mode with a gain range of 12 dB to 60 dB. Each pair of Inputs may operate with or without 12 volt phantom power via rear panel switches. When Inputs are operated in Line Mode, the gain range is -4 to 12 dB. When Line mode is selected, phantom power is defeated. Each Input may be assigned to the A, B or AUX Output.

Stereo Line Inputs 7 through 10 accommodate 24 dBusignal levels. The gain range is -8 to 12 dB. The A/B Assign switch for Inputs 7/8 assigns 7 to Output A and 8 to Output B. The A/B Assign switch for Inputs 9/10 assigns 9 to Output A and 10 to Output B. The Mono switch sends the sum of Inputs 7 and 8 (or 9 and 10) to bus A and bus B. Assigning 7/8 or 9/10 to AUX sends the sum of Input 7 and 8 (or 9 and 10) to the AUXOutput.

The A, B and AUX Outputs feature independent level controls and 10 segment meters with peak hold. Each balanced Output provides an additional 6 dB of gain and delivers a minimum signal level of 24 dBu into a 10 k Ohm load.

The MLM 103 features a built-in high efficiency, universal voltage power supply that can operate in almost any country in the world. A security cover for the EQ and Assign switches is included with the unit.

Features:

• Six Studio-grade Mic Preamplifiers
• Mic or Line-level Operation
• 2 volt Phantom Power
• Continuously Variable Gain Trim
• Direct Outputs (pre- or post- mix level)
• A/B/AUX Assign Switches
• Input Overload Indicator
• EQ & Assign Switch Security Cover Included
• Two Balanced Stereo Line-level Inputs
• Mono Switch
• A/B/AUX Assign Switch
• Input Overload Indicator
• A/B/AUX Balanced Outputs
• Independent Level Control
• 10-Segment Meter with Peak Hold
• 100-240 VAC Universal Power Supply

Applications:

Applications can include hotels, churches, conference rooms, schools and rental sound systems. The direct outputs may be used with other mixers for applications requiring room combining and/or flexible zone distribution. The studio-grade specifications of the MLM 103 allow many other applications such as sub-mixing, recording and post-production.
