A&E SPECIFICATIONS

• The rack shall include Lowell Model RPL-F rackmount panel which shall feature five bright white LED modules controlled by a push button on/off switch. The 19 in. x 1U steel panel shall have a black powder epoxy finish and mount in standard panel space in front or rear of rack. The five LEDs shall provide total 525 lumens. The panel shall include a power supply (output 12VDC, 1A).

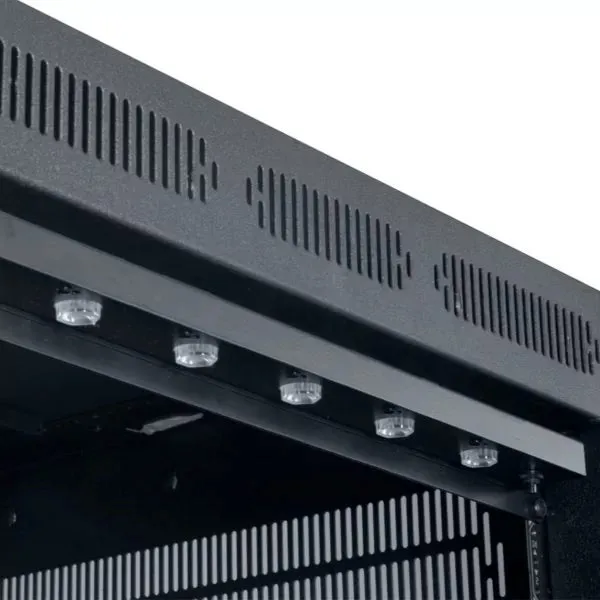

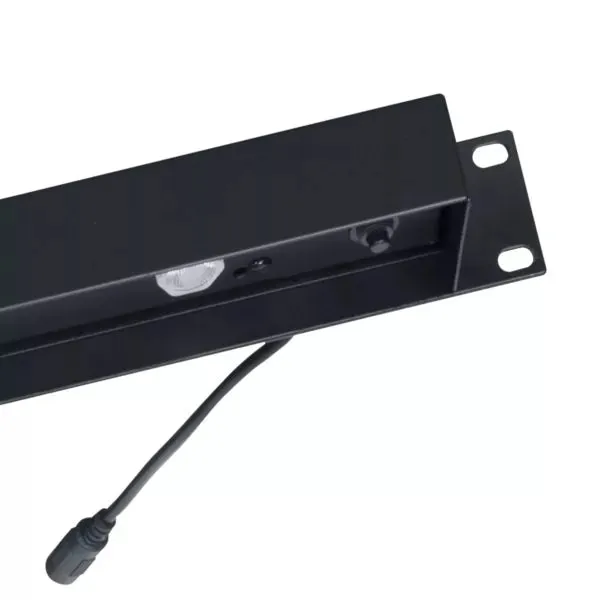

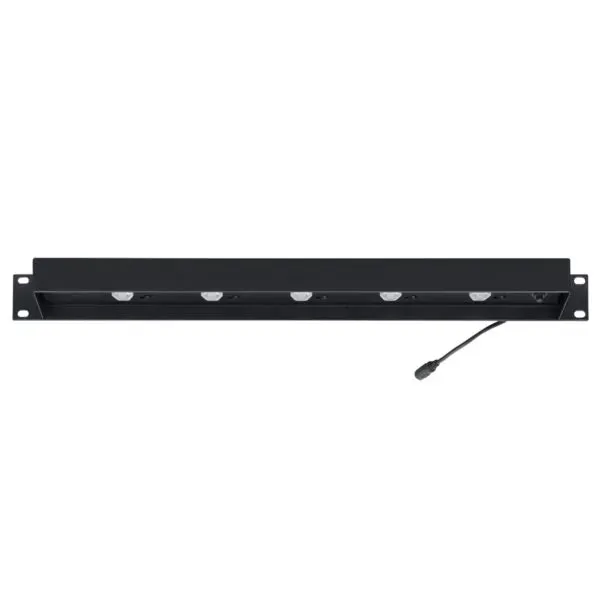

Rack mount panel with LEDs mounts in front or rear panel space. Bright white lights illuminate controls and workspace.

SPECIFICATIONS

• Five LED modules, total 525 lumens (35,000 hours life span)
• Pure white light (6000-6500K)
• Push button on/off switch

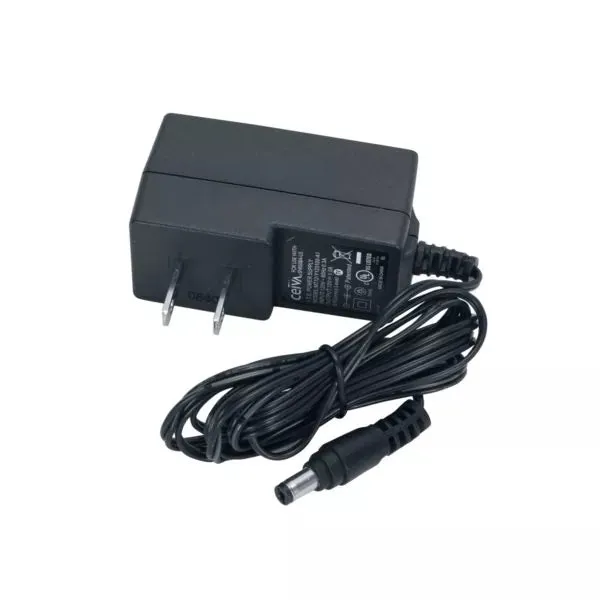

• Power supply (12VDC, 1A output)
• 19 in. x 1U x 1.75 in. steel panel with black powder epoxy finish

COMPLIANCE & CERTIFICATION

• Made in the U.S.A.
• Certified U.S. steel
• E.I.A. compliant

TECHNICAL DOWNLOADS

• Spec Sheet:
