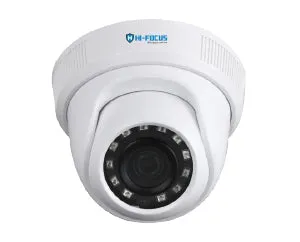

HI- Focus HC-D2200N2E 1/2.7" cmos sensor, 2.4MP(1080p) Resolution,3.6mm Fixed Lens Indoor Dome Camera, Support 4 in 1 one HD modes through UTC, Support Smart IR upto 20m, Surge Protection
- Max 30fps@1080P
- HD and SD output switchableA
- 6mm fixed lens (2.8mm,6mm optional)
- IR Length 20m, Smart IR
- DC12V±25%
Specifications
Image Sensor
Effective Pixels
Scanning System
Electronic Shutter Speed
Minimum Illumination
S/N Ratio
IR Distance
IR On/Off Control
Lens Type
Mount Type
Focal Length
Max Aperture
Angle of View
Close Focus Distance
Resolution
Frame Rate
Video Output
Day/Night
OSD Menu
BLC Mode
WDR
Gain Control
Noise Reduction
White Balance
Smart IR
Power Supply
Power Consumption
Operating Conditions
Storage Conditions
Casing
Dimensions
Net Weight
Gross Weight
1/2.7” CMOS
1944(H)×1080(V), 2.4MP
Progressive
PAL: 1/25~1/100000s
0.04Lux/F2.0, 0Lux IR on
More than 65dB
Up to 20m (66feet)
Auto / Manual
Fixed lens / Fixed iris
Board-in
3.6mm (2.8mm,6mm Optional)
F1.85
H: 93°(103°, 54.7°)
800mm (500mm,2000mm) 31.50”(19.69”,78.74”)
2.4MP (1944×1080)
25/30fps@1080P, 25/30/50/60fps@720P
1-channel BNC high definition video output / CVBS video output (Can switch) Auto (ICR) / Manual
Multi-language
BLC / HLC / DWDR
DWDR
AGC
2D
Auto / Manual
Auto / Manual
12V DC ±25%, Surge Protection
Max 2.3W (12V DC, IR on)
-40°C ~ 60°C (-40°F ~ 140°F) / Less than 90% RH
-40°C ~ 60°C (-40°F ~ 140°F) / Less than 90% RH
Plastic
Φ85.4mm×69.1mm(Φ3.36″×2.72″)
0.11kg (0.24lb)
0.17kg (0.37lb)
