Product Details
＋

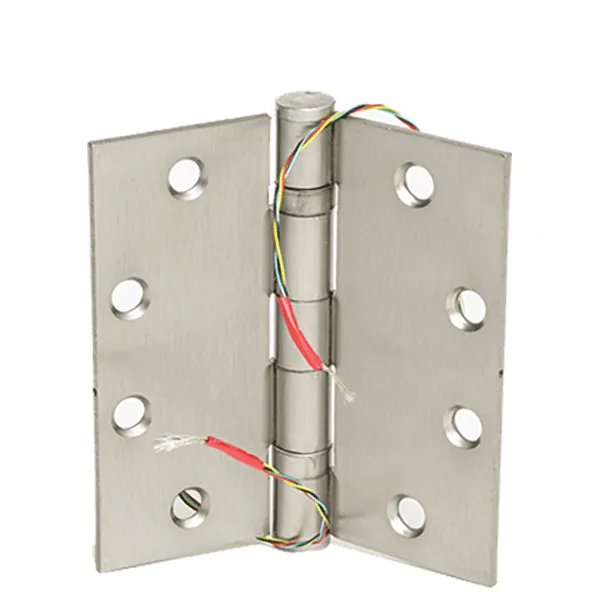

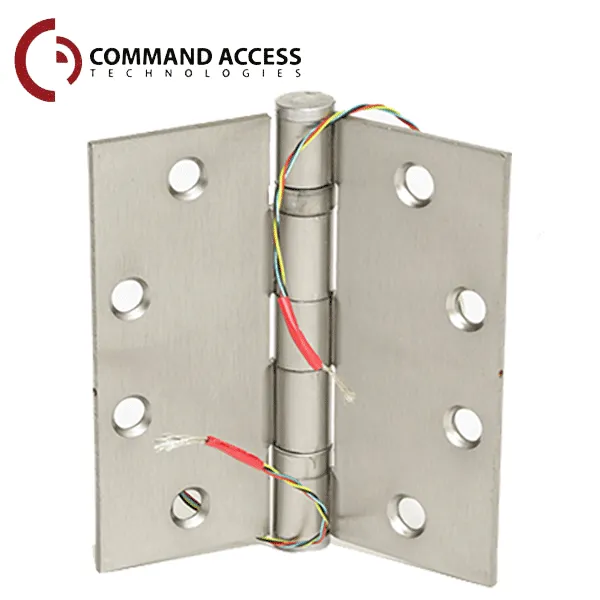

The Energy Transfer Hinge (ETH) is the ideal way to pass low voltage power from the hinge jamb to the lockset without having any exposed wires. These hinges are commonly used with electric mortise and cylindrical locks, electric strikes (when on a pair of doors), electric exit trims, latch pullback devices, door mounted card readers and low voltage door lights.
Features:
- UL-F Listed
- Easy installation
- 4’ lead at no additional charge
- Non-conductive wire access cap
- 5 Knuckle - Standard Weight Steel Base
- 3-Year Manufacturer Warranty
Specifications:
| Amp Draw | 4.0 Amps @24VDC Continuous |
| Bearing Type | Plain Bearing |
| Contact Rating | In-rush Current N/C and N/O 0.5 A max |
| Corner Type | Square |
| Duty Weight/Class | Standard Duty |
| Electrical Rating | Electrical Switch Rating 50-100 mA, 30VDC |
| Function | Energy Transfer |
| Hardware Finish | Satin Chrome Plated 626/US26D |
| Height | 4-1/2 In. |
| Hinge Type | Full Mortise Hinge |
| Knuckles | 5 |
| Mounting Location | Center hinge on door |
| Pin Type | (NRP) Non Removable |
| Power Transfer/Wires | 2-20 gauge |
| Tip Style | Standard |
| Warranty | 3 Years Manufacturer Limited |
| Width | 4-1/2 In. |
