Product Details
＋

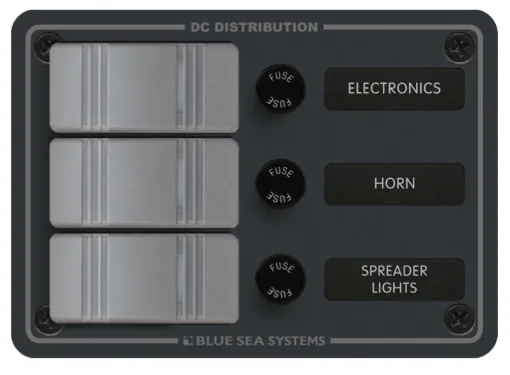

Quality switch panel with water resistant properties to IP66 Rating
Key Features
- Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switches
Techy Bits, Dimensions & Weights
- Weatherproof: Water Resistant IP66
- Positions: 3
- Nominal Voltage: 12/24V DC
- Panel Cumulative Rating: 45A
- Switch Rating: 20A @ 12V DC, 15A @ 24V DC
- Height: 3.75in ( 190.5mm )
- Width: 5.25in ( 133.35mm )
- Depth: 3.00in ( 76.2mm)
- Weight: 0.70lb (0.32kg)
