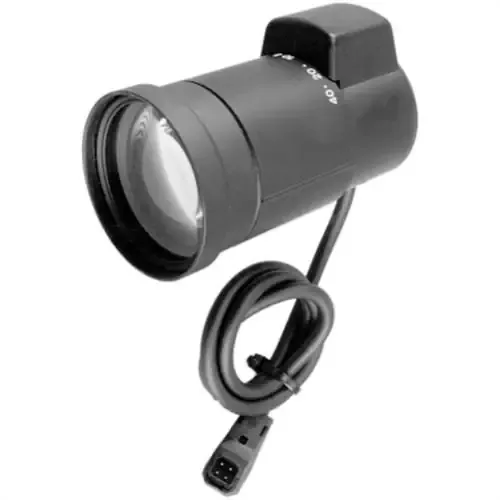

1/3" Auto Iris 5-40mm Varifocal Lens CS Mount 13VD5-40

Also Known As:

Auto Iris, Varifocal Lens, CS Mount, Format Cameras

About:

Pelco’s 13VD5-40 1/3-inch varifocal lens offer versatile and flexible packages in one basic lens. It covers a specific range of focal lengths. Appropriate for indoor and outdoor lighting situations, the it will fit all 1/3-inch CS-mount cameras requiring DC-drive auto iris lenses. In addition, it includes a spot filter. It comes with a standard square 4-pin plug installed for ease of installation and convenience. It is an intraspot-type lenses, which optimize the dynamic range of the iris. This allows for excellent performance characteristics across a wide range of lighting conditions.

Features:

• Auto Iris
• CS Mount
• Spot Filter
• For use with 1/3-Inch Format Cameras
• High Resolution Power in a Compact Body

Specifications:

• Lens Size: 5-40 mm
• CCD Size: 1/3"
• Desired Aperture: F/1.6
• Mount Type: CS Mount
• Iris Type: Auto Iris
• Part Number : 13VD5-40
