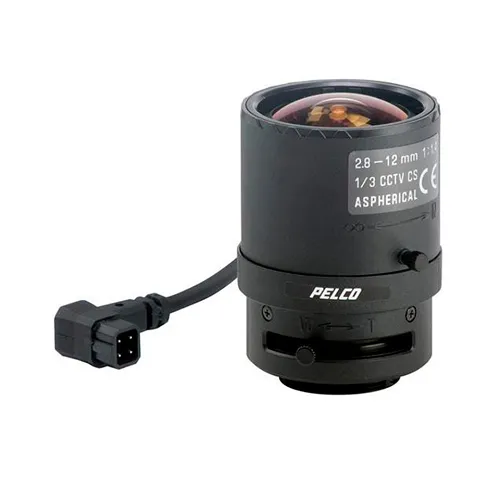

1/3" Auto Iris 2.8-12mm Varifocal Lens CS Mount 13VD2.8-12

Also Known As:

Auto Iris, Varifocal Lens, CS Mount, Format Cameras

About:

Pelco's 13VD Series 1/3-inch varifocal lenses offer versatile and flexible packages in one basic lens. Each auto iris lens in this series covers a specific range of focal lengths. Adjust these lenses to get the exact field of view instead of “almost the right view.″ Appropriate for indoor and outdoor lighting situations, the 13VD Series lenses will fit all 1/3-inch CS-mount cameras requiring DC-drive auto iris lenses. In addition, all auto iris lenses include a spot filter. Lenses in the 13VD Series come with a standard square 4-pin plug installed for ease of installation and convenience.

Features:

• Varifocal
• CS Mount
• Spot Filter
• 4.3x Zoom
• 24.1°~97.4°
• For Use with 1/3-Inch Format Cameras
• Auto Iris, Manual Focus, and Zoom
• High Resolution Power in Compact Body

Specifications:

• Lens Size: 2.8-12mm
• CCD Size: 1/3"
• Desired Aperture: F1.0
• Mount Type: CS Mount
• Iris Type: Auto Iris
• Part Number: 13VD2.8-12
